Features & Specifications

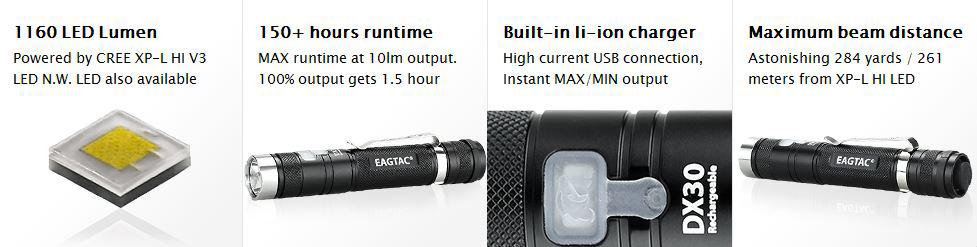

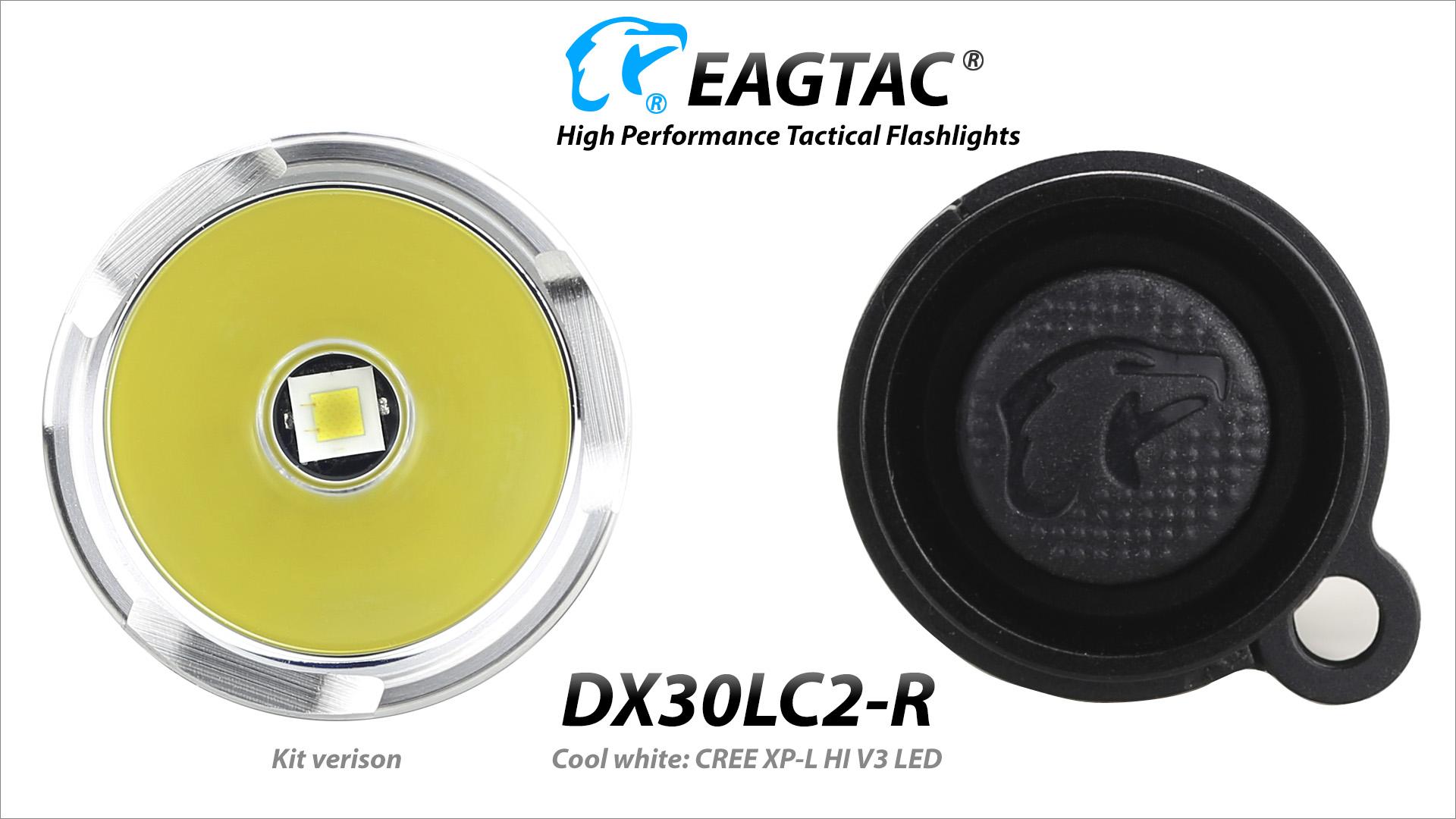

• CREE XP-L HI V3 Cool White LED

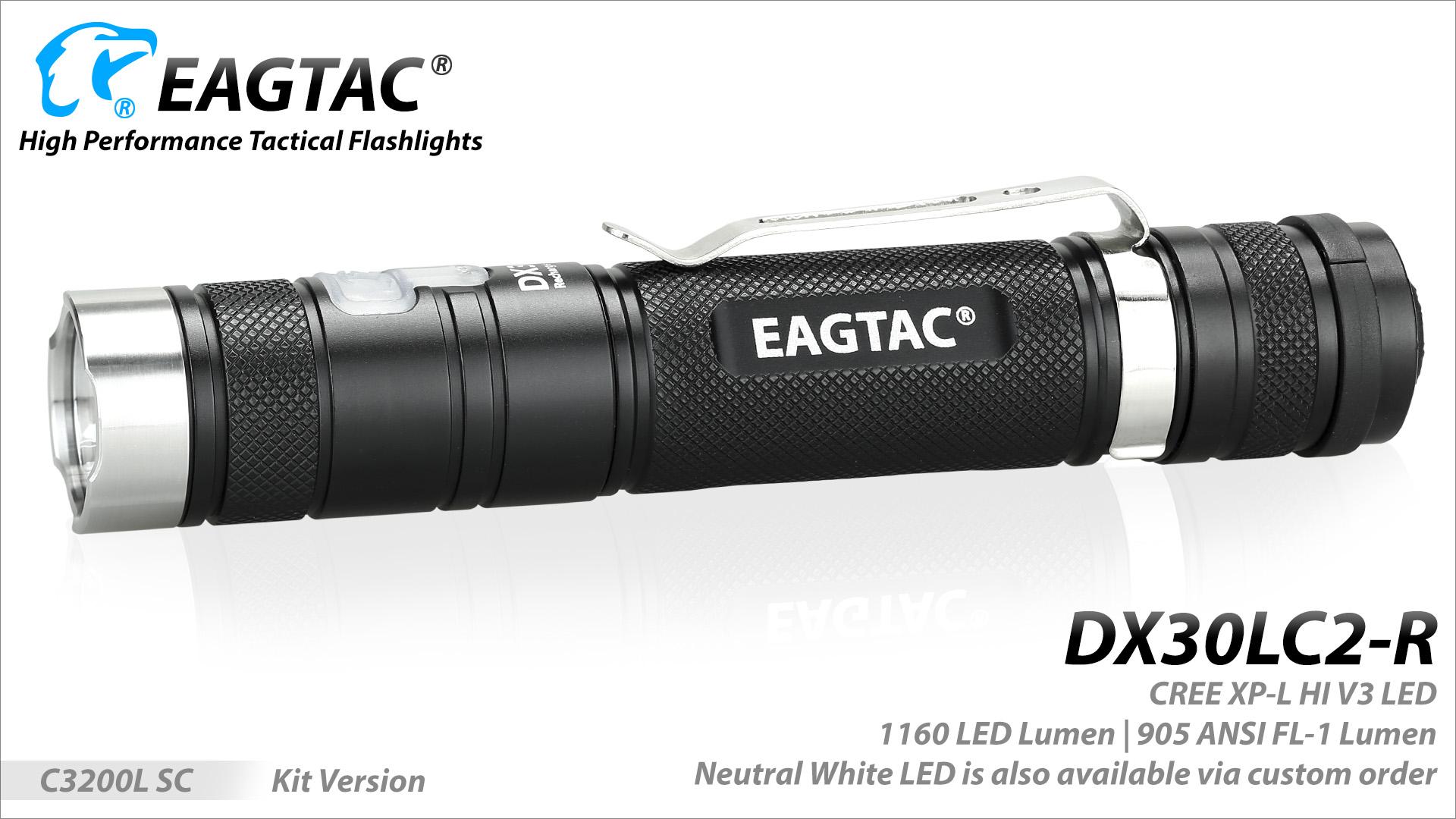

• LED lumen: 1160
• ANSI FL-14 lumen: 905

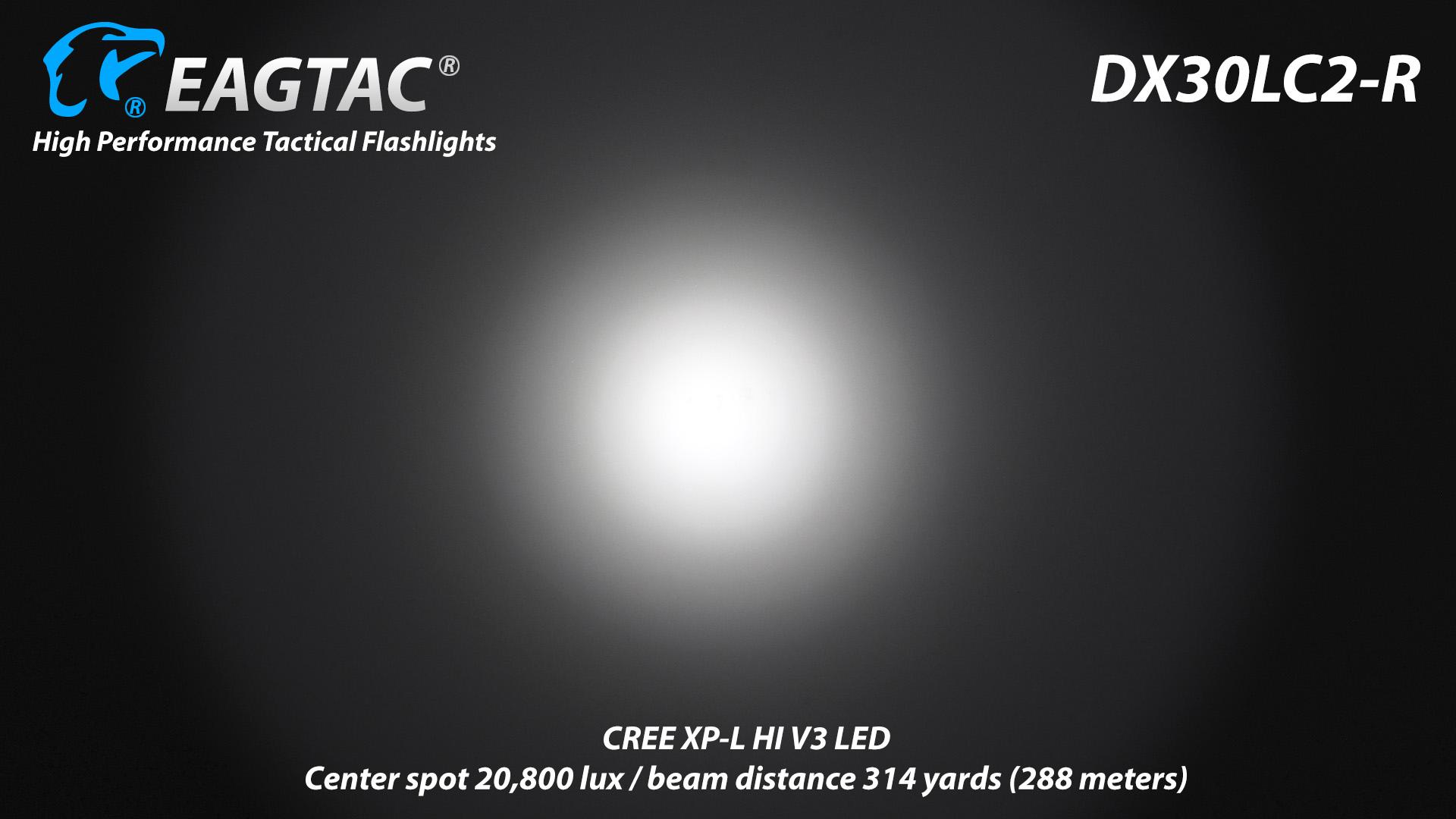

• Center lux: 20,800 lux
• Center spot angle: 5.2°
• Spill light angle: 62°
• Beam distance: 314 yards / 288 meters
• All batteries are connected in series. Do not exceed 6V. Do not use two rechargeable 3.0/3.7V RCR123A.
• Para-cord lanyard with quick attachment clip
• Heavy duty nylon holster
• IPX-8 standard Waterproof
• Light textured aluminum reflector
• HAIII hard anodization aerospace aluminum
• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

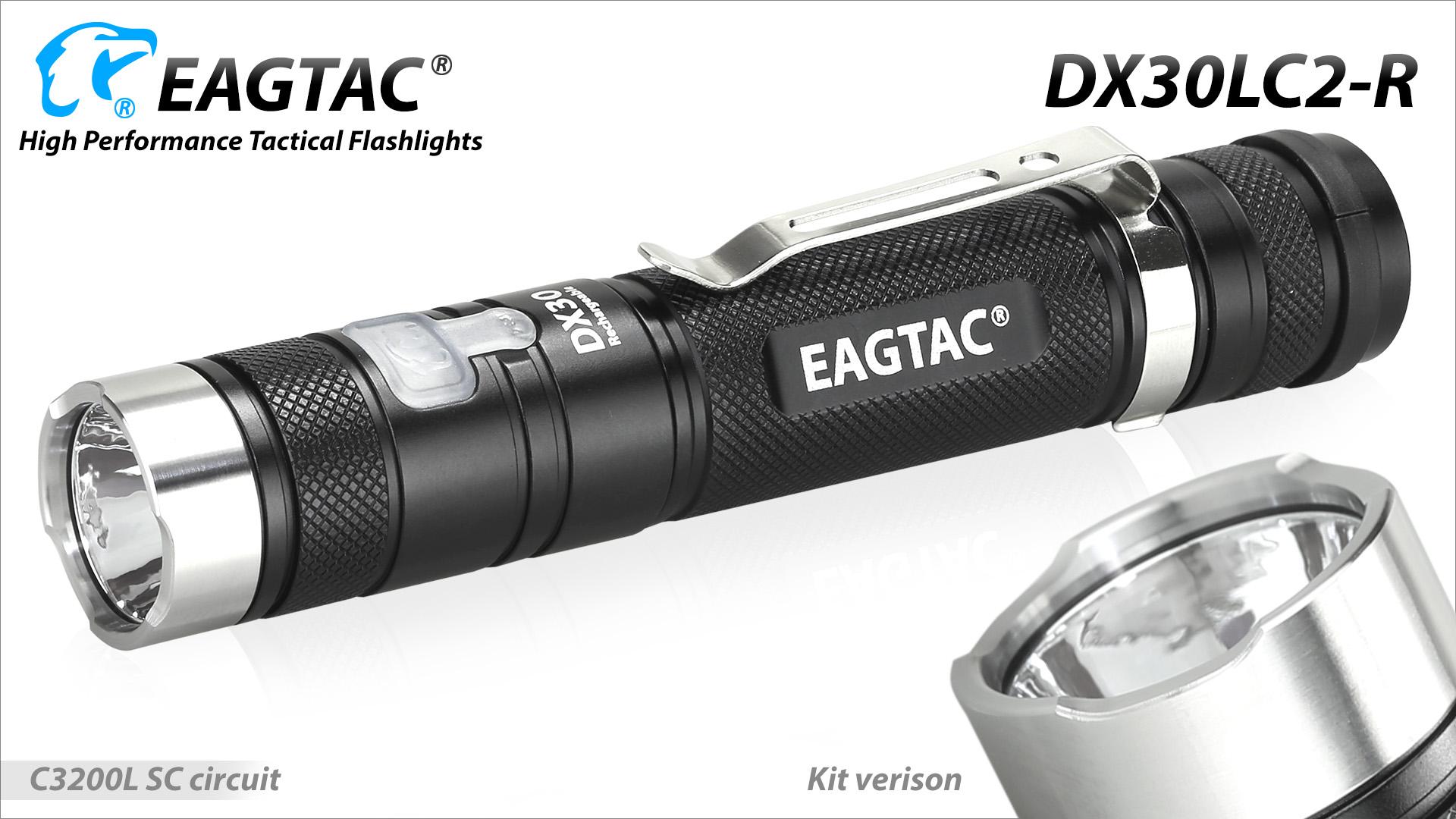

• LED circuit -C3200L SC
• Ultra low dropout voltage (<0.2v) for longer current regulated runtime
• Highly integrated design w/ built-in side click switch
• Low internal resistance design offers up to 99% efficiency
• High switching frequency (1MHz) controller for more compact circuitry design
• Non-dimming constant current regulation for all output levels without flicking
• Smart battery level report system
• Energy saving feature5
• Zero standby current
• Charging circuit -L950 SC
• 5V USB input (requires 1A or higher)
• 950mA MAX charging current
• Constant current / Constant voltage charging logarithm
• Small current charging for low voltage battery (less than 3.0V)
• Precise voltage detection design +/- 1%
• No trickle charge
• Smart charging level report system

Battery Type

• 1x18650 or 2xCR123A2
• The built-in li-ion rechargeable circuit only works with a single 18650 battery
• Compatible battery (diameter/length)
• 123A: (16-16.8mm/34-34.5mm)
• 18650: (18-18.8mm/67-68.5mm)
• Operating voltage: 2.7V - 6V

Output and Runtime

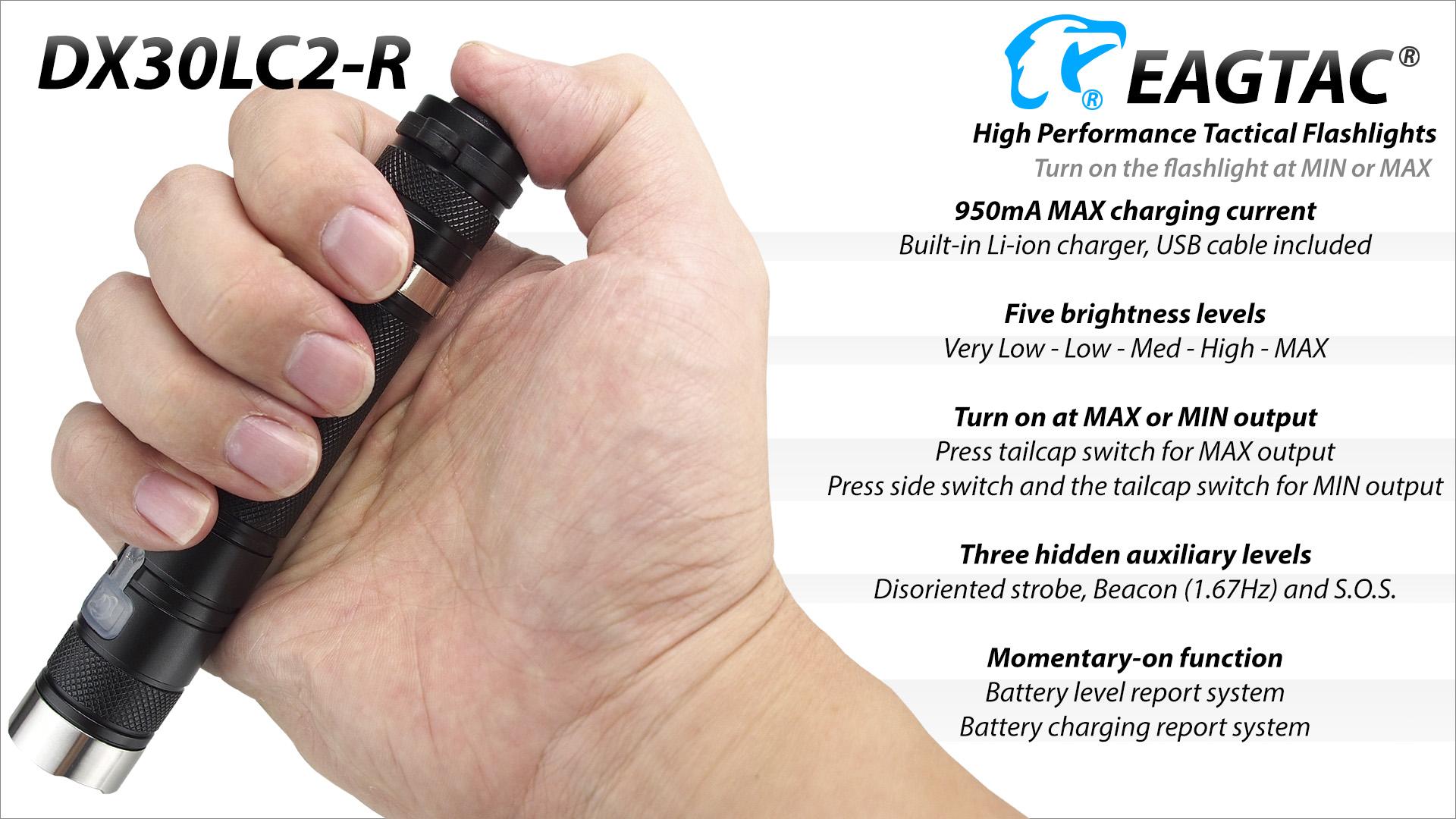

• Five brightness levels
• Led lumen:
• 11605-980/590/221/77/9
• ANSI FL-1 lumen:
• 9055-790/475/178/62/7
• Runtime:
• 1.5/2.8/8.5/28/200+ hours (1x18650)6
• 0.8/1.5/5/17/140 hours (2xCR123A)
• Three hidden auxiliary outputs7
• Disoriented Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions

• Head Dia. -0.9 inches (22.5 mm)
• Body Dia. -0.85 inches (22 mm)
• Length: 5.2 inches (132 mm)
• Weight: 2.1 ounces (60 grams) w/o battery

What's included

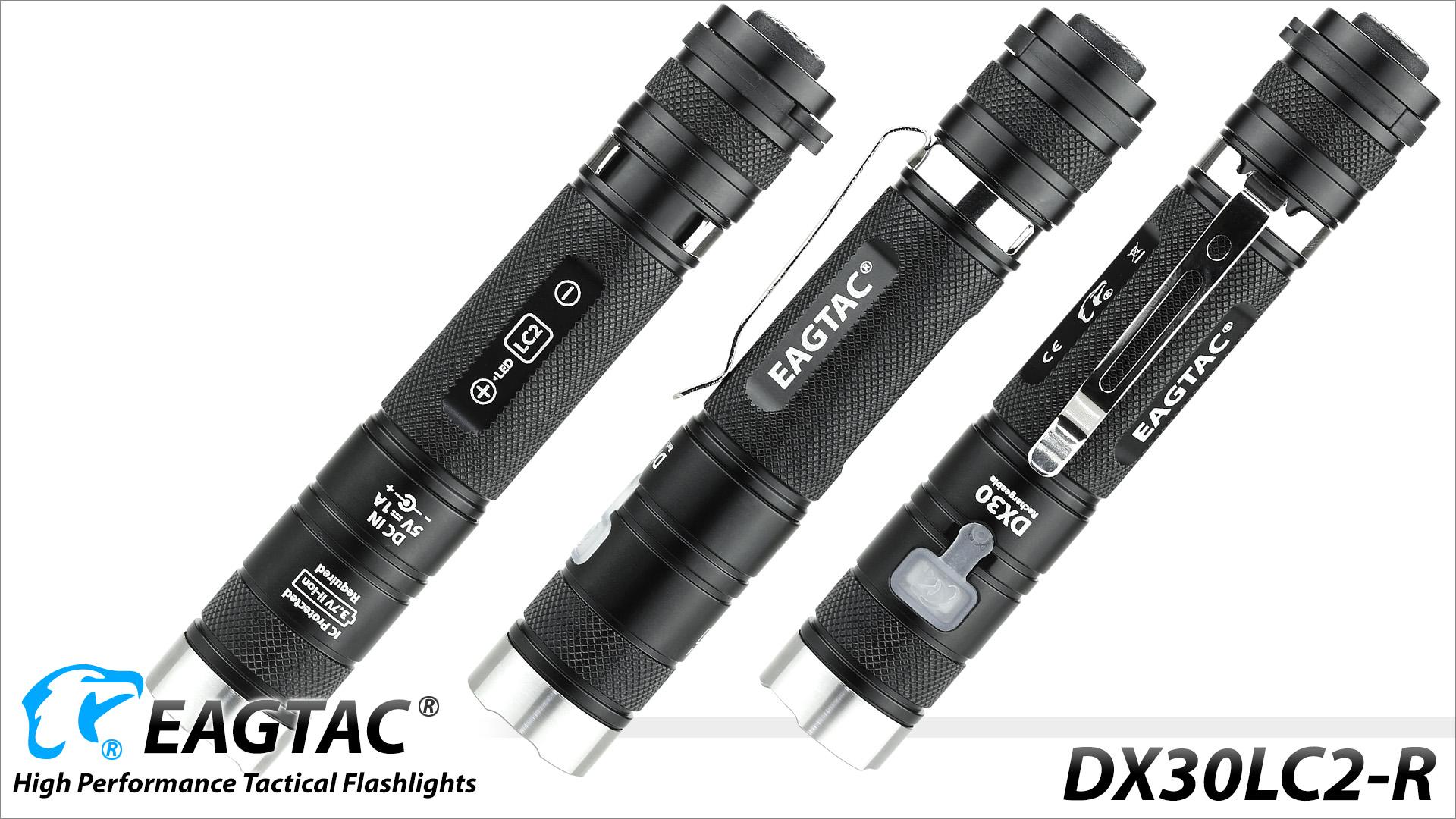

• DX30LC2-R flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• CR123A Battery Magazine
• Comes with stainless steel bezel
• Removeable silver pocket clip made of spring steel w/ harden treatment
• USB charging cable (3.3feet/1meter)
• w/ AWG24 copper wire
• EAGTAC 18650 Li-ion battery included

Two models

• Base
  • Smooth stainless steel bezel
  • EAGTAC li-ion 18650 2600mAh battery (authentic Sanyo Japan cell)
• Kit
  • Crenelated stainless steel bezel
  • EAGTAC li-ion 18650 3500mAh battery (authentic Sanyo Japan cell)
  • UL certified USB 5V 1A wall charger (100V-240V)
  • Heavy duty nylon holster
