Eagletac GX30A3D XP-L Hi V3 Flashlight / Searchlight 1330 Lumens

Brand: EagleTac
Your Price:

This product is available to ship immediately.

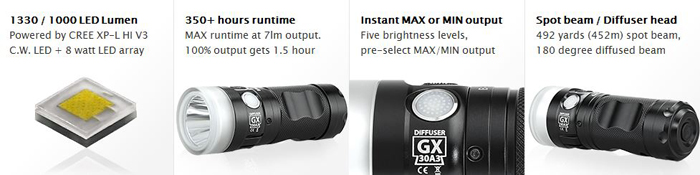

We combined both the spot and diffused output in one LED flashlight. It's a ground breaking design in the flashlight industry, which traditionally uses diffuser add-on tip, diffused lens, or zoomable head to achieve the diffused or flooded beam effect. The all-new GX30A3D features an innovative two buttons control that allows user to conveniently opreate the light with one-hand only.


Features & Specifications

Battery Type

  • 3xAA
  • Compatible battery dimensions
  • Diameter: 14-14.6mm
  • Length:50-51.2mm
  • Read precaution with li-ion batteries.


Operating voltage

  • 2.7V - 6V
  • All batteries are connected in series. Do not use 3.6V/3.7V 14500 li-ion.
  • Waterproof: IPX-8 standard
  • Max output
    • CREE XP-L HI V3 Cool White LED
    • LED lumen: 1330
    • ANSI FL-14 lumen: 980


Beam Profile

  • CREE XP-L HI V3 Cool White LED
  • Center lux: 51,000 lux
  • Center spot angle: 4°
  • Spill light angle: 56°
  • Beam distance: 492 yards / 452 meters



  • Waterwhite glass lens w/ harden treatment
  • Anti-reflective (AR) coating on both side (96% transparency)


LED circuit

  • C3900L DIFF
  • Ultra low dropout voltage (<0.2V) for longer current regulated runtime
  • Low internal resistance design offers up to 99% efficiency
  • High switching frequency (1MHz) controller for more compact circuitry design
  • Non-dimming constant current regulation for all output levels without flicking
  • Battery level report system
  • Energy saving feature5
  • Very low standby current (negligible)



  • Smooth aluminum reflector



  • HAIII hard anodization aerospace aluminum
  • Optical grade shatterproof diffuser material


Battery Arrangement

  • Innovative slot load design
  • No battery tray or battery magazine needed


Battery level report

  • A blue LED indicator under the main switch reports the estimated battery remaining capacity
  • Flash once: lower than 20%
  • Flash twice: 20%-40%
  • Flash 3x times: 40%-60%
  • Flash 4x times: higher than 80%


Output and Runtime

  • Five brightness levels (SPOT only)
    • Led lumen:
    • 13305-1043/670/252/92/10
    • ANSI FL-1 lumen:
    • 9805-835/540/205/74/8
    • Runtime:
    • 0.9/1.4/3.8/11/100 hours6
  • Five brightness levels (Diffuser only)
    • LED lumen: 1000/462/190/63/8
    • Runtime: 1/1.6/5/18/100 hours
  • Five brightness levels (SPOT + Diffuser)
    • SPOT LED lumen: 730/370/132/40/5
    • Diffuser LED lumen: 710/355/100/35/4
    • Runtime: 1/1.5/4/12/100 hours
  • Three hidden auxiliary outputs7
    • Disoriented Strobe/Beacon (1.67Hz)/S.O.S.



  • Head Dia.: 1.6 inches (39.5 mm)
  • Body Dia.: 1.4 inches (35.5 mm)
  • Length: 4.3 inches (109 mm)
  • Weight: 4.8 ounces (137 grams)


What's included:

  • GX30A3D flashlight
  • Spare o-ringsUser Manual
  • Mil-Spec Para-cord Lanyard w/ quick attachment clip
  • Comes with tailcap w/ switch and tail-standing ability
  • Signal connection through the body tube for rear accessories add-on
  • Heavy duty nylon holsterw/ self-retention device and open-top design
  • Carrying method
    • Para-cord lanyard with quick attachment clip
    • Rigid nylon holster w/ retention device


Please note:

This flashlight needs to use 3 amp continuous discharge batteries (Energizer Ultimate Lithium or comparable) to get the advertised lumens.

To run on the diffuser mode: click on the white button to turn the light on to its minimum brightness setting first.  Then press and hold the black button while clicking on the white button to cycle through diffuser functionality.
